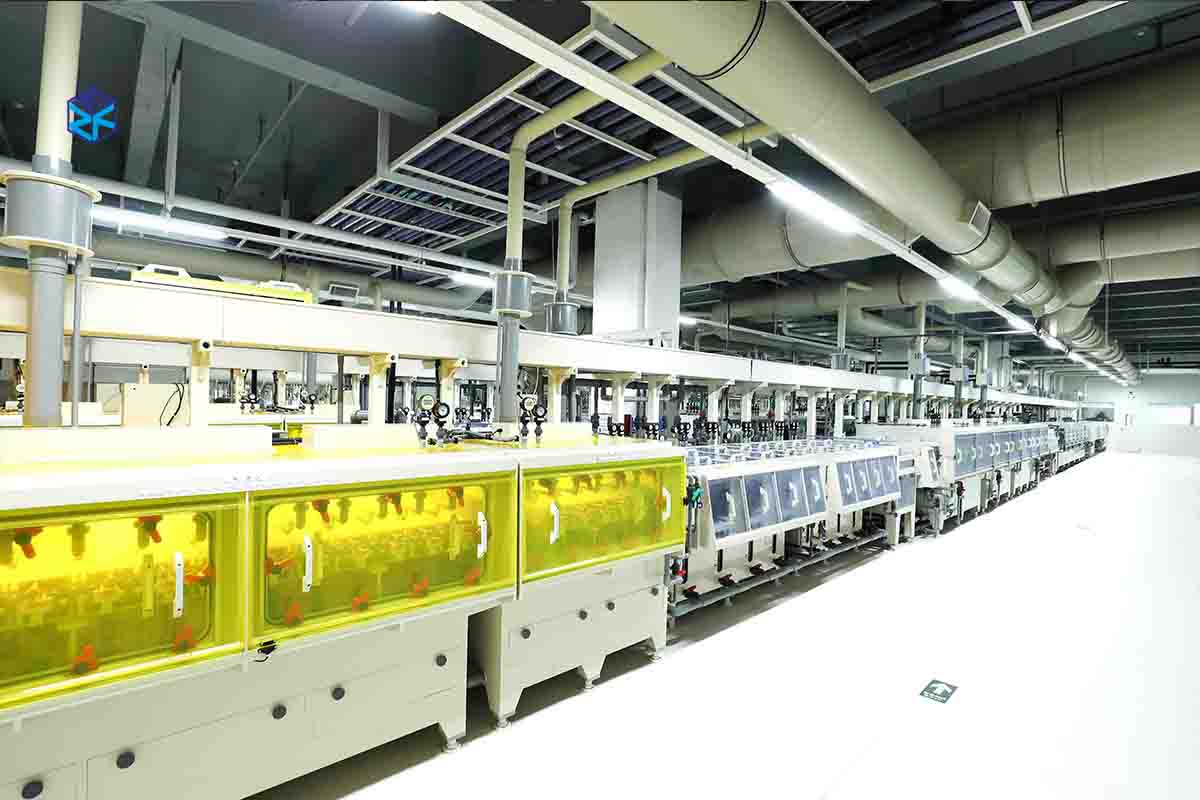

PCB Circuit Etching - Vacuum Etching Machine

The vacuum etching machine equipment uses chemical solutions to etch circuit patterns onto the PCB copper surface.

Benefits and Advantages of PCB Production with Vacuum Etching Lines

1. Enhanced Etching Precision and Quality:

• Precise Control:The vacuum etching technology uses a vacuum environment to minimize the impact of air contaminants and impurities on the PCB etching process. This results in higher etching precision, finer details, and improved PCB quality.
• Uniformity:Reduced contact between the etching solution and air in the vacuum environment ensures more uniform etching results. This decreases the risk of edge roughness or uneven etching, which is critical for achieving consistent results in HDI PCB and Heavy Copper PCB

2. Improved Production Efficiency:

• Speed:Vacuum etching lines enable faster PCB production processes, shortening production cycles and enhancing overall PCB production efficiency.
• Reduced Rework:High-quality etching reduces the need for rework and corrections due to uneven etching, further boosting production efficiency and reducing the impact of process errors on the final product.

3. Enhanced Process Control:

• Stability:The vacuum system allows for precise control of parameters such as temperature, pressure, and chemical concentration, improving process stability and predictability. This control is essential for maintaining consistent inner copper thickness and outer copper thickness in PCB production.
• Real-Time Monitoring:Advanced PCB etching systems with real-time monitoring technologies enable adjustments at every production step, ensuring consistent product quality and effective PCB process control.

4. Lower Production Costs:

• Waste Reduction:Higher etching precision and uniformity reduce waste and defective products, leading to lower material costs and improved cost-efficiency in PCB manufacturing.
• Labor Savings:Automation in vacuum etching lines reduces reliance on manual labor, cutting labor costs and minimizing additional expenses from human errors, thus advancing PCB production automation.

5. Improved Work Environment:

• Pollution Reduction:The vacuum environment effectively reduces chemical vapor emissions, minimizing health impacts on employees and contributing to lower PCB environmental impact.
• Noise Reduction:Vacuum etching lines operate with lower noise levels, enhancing the production environment and providing a more comfortable workplace.

6. Enhanced Environmental Performance:

• Reduced Chemical Waste:The sealed environment of the vacuum etching line better controls and manages etching solution usage, reducing chemical waste emissions and promoting environmental sustainability.
• Gas Emission Control:The vacuum system lowers harmful gas emissions, reducing environmental impact and meeting stringent environmental standards for PCB manufacturing.

Benefits and Advantages of PCB Vacuum Etching Lines

1. Improved Etching Precision and Quality:

• Precise Control:The vacuum etching line utilizes a vacuum environment to minimize the impact of airborne contaminants and impurities on the etching process, resulting in higher etching precision and more detailed features.
• Uniformity:In a vacuum environment, reduced contact between the etching solution and air results in more uniform etching, reducing the risk of rough edges or uneven etching.

2. Enhanced Production Efficiency:

• Faster Speed:Vacuum etching lines enable faster etching processes, shortening production cycles and improving overall production line efficiency.
• Reduced Rework:High-quality etching reduces rework and corrections caused by uneven etching, further increasing production efficiency.

3. Improved Process Control:

• Stability:The vacuum system allows for more precise control of temperature, pressure, and chemical concentrations during the etching process, enhancing process stability and predictability.
• Real-time Monitoring:Advanced process control and monitoring technologies enable real-time monitoring and adjustment of every step in the production process, ensuring consistent product quality.

4. Lower Production Costs:

• Reduced Waste:Higher etching precision and uniformity decrease waste and defects in production, lowering material costs.
• Labor Savings:Automated vacuum etching lines reduce reliance on manual operations, lowering labor costs and minimizing additional costs due to manual operation errors.

5. Improved Work Environment:

• Reduced Pollution:The vacuum environment effectively reduces the release of chemical vapors, decreasing the impact of the production process on employee health.
• Lower Noise:The operation noise of vacuum etching lines is lower, improving the production environment and providing a more comfortable workplace.

6. Enhanced Environmental Performance:

• Reduced Chemical Waste:The sealed environment of the vacuum etching line allows for better control and management of etching solution use, reducing chemical waste emissions.
• Controlled Gas Emissions:The vacuum system reduces the release of harmful gases, minimizing environmental impact and complying with environmental regulations.
