PCB Hole Copper Plating - Via Filling Plating Lines

2024-08-22 16:09:51

The Role of Via Filling Plating Lines

Via filling plating lines are crucial in the PCB manufacturing process, ensuring the functionality and reliability of electronic devices. Here's an overview of their key roles:

  1. Creating Electrical ConnectionsVia filling plating lines deposit conductive material into drilled vias to establish electrical connections between different layers of a PCB. This enables efficient signal and power transmission across multiple layers, which is essential for multilayer PCBs.
  2. Enhancing Mechanical StrengthThe plating process reinforces the vias, providing structural support and ensuring that components inserted into these vias are securely fixed. This helps reduce the risk of component movement or damage during operation, thereby enhancing the PCB's durability, particularly in high-stress applications.
  3. Improving Electrical PerformanceUniform via filling plating ensures consistent electrical conductivity, minimizing signal loss and maintaining signal integrity across layers. Properly plated vias also aid in better heat dissipation, reducing the risk of thermal stress on the board.
  4. Facilitating Reliable SolderingPlated vias serve as reliable solder pads for components, ensuring strong solder joints between component leads and the PCB. This contributes to high-quality solder connections and overall improved performance of electronic devices.
  5. Supporting Advanced PCB DesignsVia filling plating is essential for advanced PCB designs such as high-density interconnect (HDI) and multilayer PCBs. It enables complex routing and interconnects within the board, supporting the development of more compact and efficient electronic circuits.
  6. Enabling Automated ProductionThe via filling plating process supports automation in manufacturing, ensuring precise and consistent PCB production. Automation helps achieve uniform quality, reduces human error, and improves production efficiency

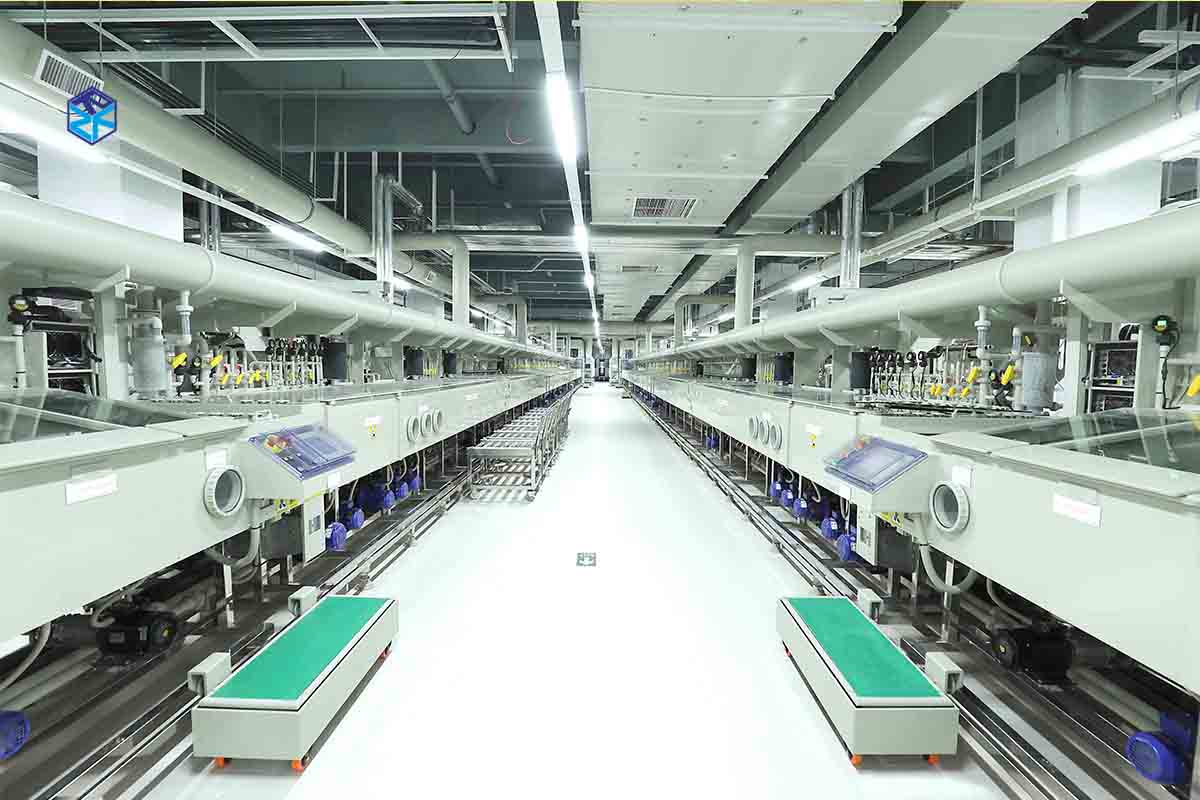

Via Filling Plating Lines.jpg

The Role of Hole Filling Plating in PCB Manufacturing

Hole filling plating is a crucial process in printed circuit board (PCB) manufacturing, directly affecting the functionality and reliability of electronic devices. Here’s an overview of its importance and key functions:

  1. Establishing Electrical Connections
    Hole filling plating, also known as through-hole plating, involves depositing a conductive layer within drilled holes to create electrical connections between the layers of a PCB. This enables the transmission of signals and power across multiple layers, which is essential for multilayer PCB
  2. Enhancing Mechanical Strength
    The plating process provides structural support to the PCB by reinforcing the holes, ensuring that components inserted into these holes are securely held in place. This minimizes the risk of component movement or damage during operation or handling, thereby enhancing the durability of the PCB, especially in high-stress applications.
  3. Improving Reliability and Performance
    Consistent electrical conductivity across the PCB is achieved through uniform hole plating, reducing signal attenuation and ensuring the integrity of electrical signals between layers. Properly plated holes also facilitate better heat dissipation, reducing the risk of thermal stress on the board.
  4. Facilitating Component Soldering
    Plated holes serve as solder pads for components on the PCB, ensuring reliable and strong solder joints between component leads and the board. The plating process helps achieve uniform, high-quality solder connections, which are vital for the overall performance of electronic devices.
  5. Supporting Advanced PCB Designs
    Hole filling plating is critical for advanced PCB designs, such as high-density interconnect (HDI) and multilayer PCBs. It allows for complex routing and interconnect options within the board, supporting the creation of more compact and efficient electronic circuits.
  6. Enabling Automated Manufacturing
    The hole filling plating process supports automated manufacturing techniques, ensuring high-precision PCB production. Automation in plating helps achieve consistent quality and reduces the likelihood of human errors, leading to improved productivity and lower costs.



How to Ensure High-Quality PCB Holes? Key Considerations

Ensuring high-quality holes in PCB manufacturing requires strict control over several critical processes. Here are some key considerations:

  1. Optimize Drilling Process
  • Adjust drilling speed and pressure, choose appropriate drill bits, and ensure effective chip removal and cooling during drilling.
  1. Thorough Hole Cleaning
  • Remove drilling residues and contaminants to improve plating adhesion and ensure a clean hole wall.
  1. Control Plating Process Parameters
  • Ensure uniform copper deposition during the copper plating process by adjusting current density, plating time, and temperature.
  1. Prevent Air Bubbles in Holes
  • Use proper venting design and vacuum-assisted techniques to eliminate trapped air and ensure even plating within the holes.
  1. Strengthen Hole Inspection and Quality Control
  • Measure hole diameter, check hole wall smoothness, and verify plating thickness using precise inspection equipment.
  1. Ensure Alignment in Multilayer Boards
  • Maintain high alignment accuracy between layers to prevent misalignment issues that could lead to incomplete connections.
  1. Utilize Suitable Hole Filling Techniques
  • Choose appropriate resin filling materials based on application needs, ensuring no air pockets or voids during the filling process.
  • RICHPCBA.jpg

Controlling PCB Hole Copper Thickness

PCB hole copper thickness refers to the thickness of the copper layer within the hole after the plating process. This parameter is critical for ensuring both electrical performance and mechanical strength:

  • IPC-6012 Standardstypically require a minimum hole copper thickness between 20 microinches and 1 mil.
  • Factors such as plating time, current density, and hole size impact the final copper thickness.
  • Adequate hole copper thickness helps reduce resistance, enhance mechanical strength, and improve long-term reliability.



Common PCB Defects Caused by Poor Copper Plating

Defects arising from improper copper plating can lead to several issues in PCBs:

  1. Insufficient Copper in Holes: Leads to unstable electrical connections.
  2. Voids in Holes: Causes open circuit problems.
  3. Rough Copper Layers: Affects soldering quality and electrical performance.
  4. Hole Wall Delamination: Results in poor inter-layer connections.
  5. Excessive Copper Thickness: Reduces hole diameter, making assembly difficult.
  6. Uneven Plating: Compromises overall PCB performance.
  7. Blistering: Prone to peeling during thermal cycling or soldering.
  8. Through-Hole Cracks: Leads to poor signal transmission.
  9. Poor Copper Deposition: Causes discontinuous electrical connections.
  10. Soldering Issues: Affects component stability and electrical connections.

By optimizing the plating process, closely monitoring parameters, and performing regular equipment maintenance, these defects can be minimized, ensuring high-quality copper plating and reliable PCB performance.

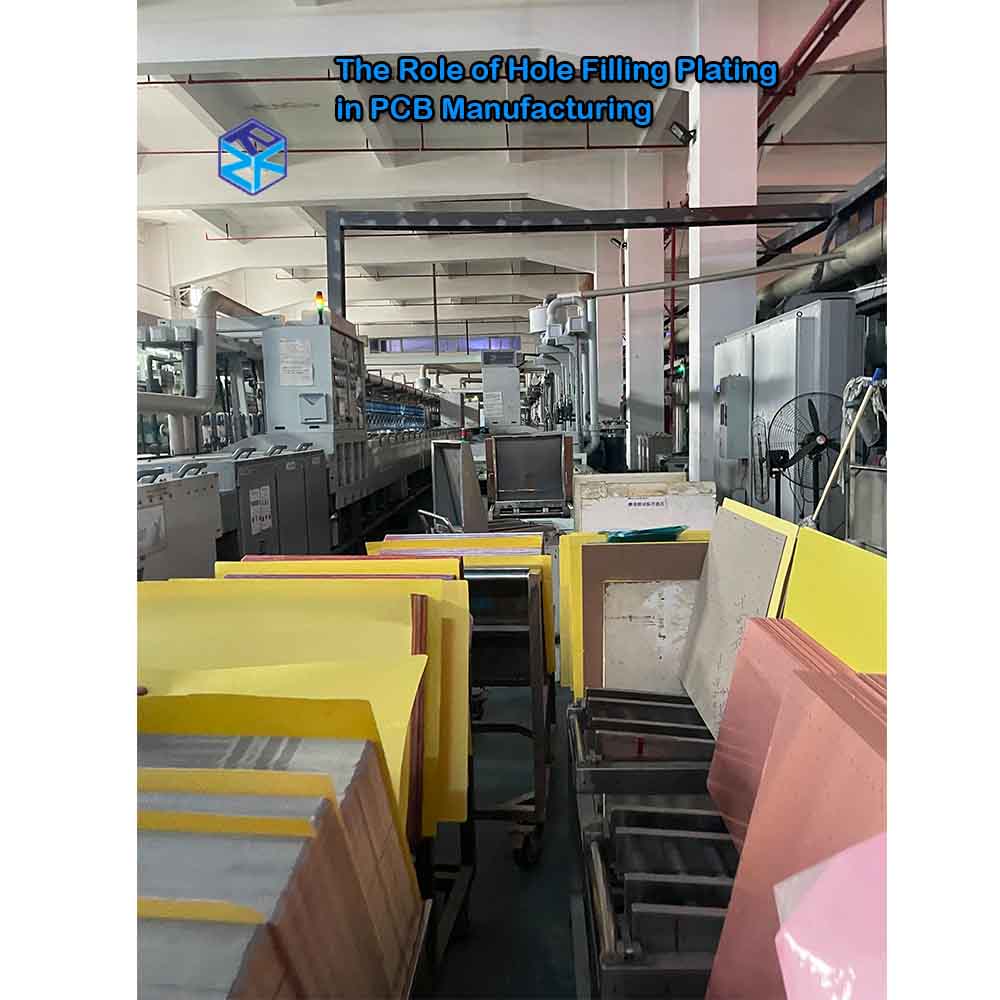

PCB Hole Copper Plating.jpg

What differences does high-quality plating equipment make in the copper plating of holes?

How High-Quality Plating Equipment Affects Copper Plating

  1. Consistent Copper Thickness
  • Uniformity: High-quality plating equipment ensures that the copper layer inside the holes is evenly deposited, maintaining consistent thickness throughout. This avoids issues with unstable connections or signal loss due to uneven copper layers.
  1. Smooth Copper Surface
  • Improved Finish: Advanced plating technologies produce a smooth copper surface without rough patches or particles. This enhances solder quality and performance, leading to better electrical conductivity and mechanical stability.
  1. Strong Adhesion
  • Enhanced Reliability: Superior plating equipment ensures that the copper adheres firmly to the hole walls, preventing peeling or separation. This improves the PCB’s durability and reliability over time.
  1. No Bubbles or Voids
  • Fewer Defects: High-quality equipment effectively prevents the formation of bubbles or voids during plating, ensuring a solid copper layer that avoids connectivity issues or circuit failures.
  1. Increased Mechanical Strength
  • Better Support: The copper layer produced by top-notch equipment provides strong support for components inserted into the holes, reducing the risk of component movement or damage.
  1. Stable Electrical Performance
  • Lower Resistance: Evenly applied copper thickness helps lower resistance, ensuring stable current flow and overall better electrical performance of the PCB.
  1. Fewer Post-Processing Problems
  • Easier Handling: High-quality copper layers lead to fewer issues during later processing stages, such as reduced hole diameter or copper layer detachment, which lowers production costs and improves efficiency.
  1. Better Heat Dissipation
  • Improved Thermal Management: High-quality copper layers enhance heat dissipation, reducing thermal stress on the PCB and ensuring stable performance even under high temperatures.
  1. Reduced Production Defects
  • Less Rework: With better plating quality, there are fewer defects, leading to lower rework rates and scrap, and improving overall production efficiency and quality.
  1. Industry Standards Compliance
  • Consistent Quality: High-quality plating equipment typically meets or exceeds industry standards, ensuring reliable performance and quality in the final product.

Using high-quality plating equipment results in better copper plating, leading to improved electrical connectivity, mechanical strength, and overall reliability of the PCB.
