Implantable Medical PCB Reliability: Solving CAF Growth in Body Fluid Environments
When a pacemaker lead delivers a therapy pulse or a neurostimulator modulates neural activity, the printed circuit board inside that device is not operating in a clean, dry environment. It is submerged in a warm, ion-rich, biochemically active fluid that never stops attacking its dielectric structure. The reliability conversation for implantable medical PCBs has always centered on this hostile reality. But recent data adds a sharper edge: conductive anodic filament growth rates measured in simulated body fluid environments are running at double the rate predicted by standard accelerated life test models.
For medical device OEMs, this finding is not a reason to panic. It is a reason to get specific — about materials, about via architecture, about lamination parameters, about every single manufacturing decision that determines whether a PCB substrate holds the line against CAF for ten years or fails silently at six.
As a PCB manufacturer and PCBA service provider working with medical device customers, RICHFULLJOY treats this 2X gap not as an academic question but as a production floor challenge. The path to closing that gap runs through decisions made long before copper meets laminate — and through process controls sustained across every lot.
The Substrate Is the First Line of Defense — And Most Get It Wrong

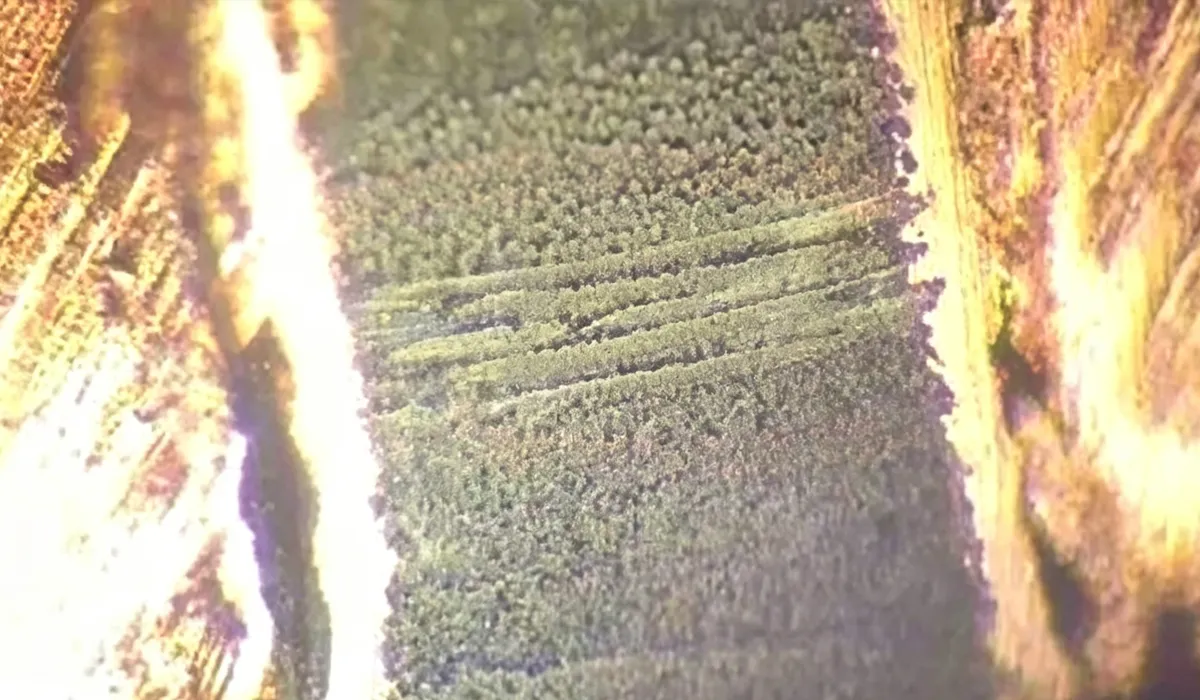

CAF does not start at the copper trace. It starts at the interface between glass fiber and resin — the most fundamental architectural joint in any PCB. In a standard FR-4 laminate, that interface is inherently metastable. The silane coupling agents that bind glass to epoxy are hydrolytically degradable. Under body fluid conditions — 37°C, near-neutral pH, continuous ionic loading — this degradation proceeds not in years, but in months.
The industry's default response to CAF risk in medical-grade PCB fabrication is to specify a "CAF-resistant" laminate from a qualified supplier. But "CAF-resistant" is a designation earned in 85°C/85% RH testing, not in simulated body fluid. A laminate that passes 1,000 hours of 85/85 may still develop conductive filaments within 500 hours of physiological saline exposure at 37°C. The failure mechanism is the same; the kinetics are radically different.
This forces a deeper question for every medical PCB manufacturer: when selecting a substrate for an implantable device, are you qualifying against the environment the board will actually inhabit, or against a proxy that the datasheet industry has collectively agreed is "good enough"?
RICHFULLJOY’s approach to material qualification for implantable applications starts with a principle: test the laminate in the electrolyte it will face. Simulated body fluid — with sodium, potassium, calcium, chloride, and phosphate concentrations matching interstitial fluid — becomes the test medium, not deionized water vapor. Bias voltage is applied continuously. Test duration extends well past the standard window, because the failure mode that concerns us most — slow, insidious CAF growth — often does not announce itself until 2,000 hours or beyond.
The difference this makes in material selection is substantial. Some laminates that top the CAF-resistance rankings under 85/85 drop significantly when the electrolyte changes. Others, particularly those with hydrophobic resin backbones or non-standard glass treatments, hold their performance. Without application-specific qualification, the designer is selecting materials blind.
Via Architecture: Where Moisture Finds Its Path

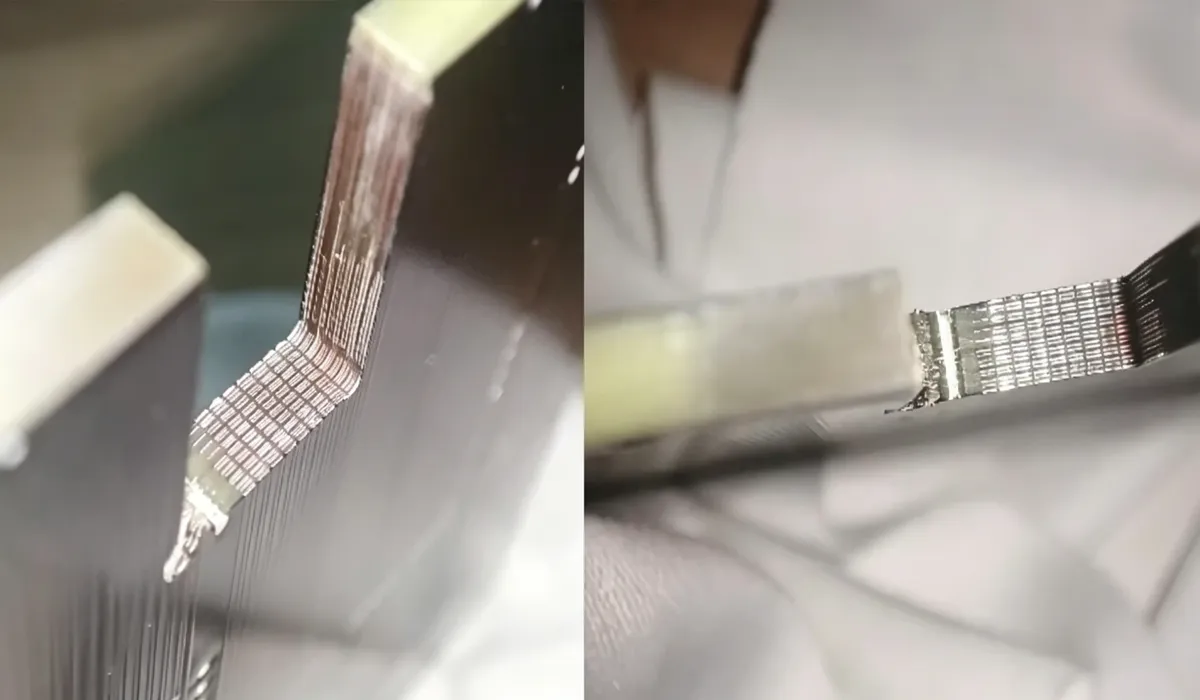

If the substrate is the first line of defense, the via structure is the breach point. Every through-hole via in an implantable PCB creates a vertical shaft through the entire board cross-section. If that via is unplugged or partially plugged, body fluid has a direct diffusion path into the inner layers of the laminate. Once fluid reaches an internal glass bundle, CAF initiation becomes a matter of time and voltage gradient.
The traditional approach to via protection in medical PCB fabrication has centered on two strategies: via tenting (covering the via pad with soldermask) and via plugging (filling the hole with epoxy or another material). For non-implantable medical electronics, these measures are often sufficient. For a device that will spend a decade inside a human body, they are the minimum viable starting point — not the solution.
The failure mode that designers frequently miss is the thermal expansion mismatch between the via fill material and the surrounding laminate. Body temperature is a constant 37°C — not high by electronics standards, but absolutely relentless. Over ten years, a device experiences 87,600 hours of thermal cycling between room temperature and body temperature during charging, handling, or temporary removal. Each cycle applies micro-strain to the fill-laminate interface. If the coefficient of thermal expansion differs by more than a few ppm/°C, micro-cracks will propagate. Moisture will follow.
This is why RICHFULLJOY’s engineering team specifies via fill materials for implantable applications based not just on CTE compatibility, but on long-term adhesion durability under wet conditions. A via plug that passes initial continuity testing is meaningless if the plug-laminate interface delaminates after two years of saline exposure. We require wet-adhesion data — peel strength after 1,000 hours of SBF immersion at 37°C — as part of the material vetting process.
For the most critical implantable designs, the conversation extends to via architecture choices at the design stage. Can certain high-voltage nets avoid through-hole vias entirely, using blind or buried structures instead? Can the via be positioned so that even if CAF initiates, the filament path cannot bridge to a functionally critical net? These are not manufacturing questions — they are design-for-reliability questions that a PCB manufacturer with implant experience brings to the customer relationship early, before the layout is frozen.
Lamination Process Control: The Parameter No One Talks About
The CAF resistance of a given laminate is not a fixed material property. It is a function of how that laminate was processed. This is one of the most under-discussed truths in PCB manufacturing for high-reliability applications — and it matters enormously for implantable devices.
During multilayer lamination, the prepreg layers must flow, wet the copper features, and crosslink into a homogeneous dielectric structure. If the lamination press profile is suboptimal — if the heat-up rate is too fast for the prepreg to fully flow before gelation begins, if the pressure cycle does not adequately collapse voids at the copper-prepreg interface — the result is a board that looks good in cross-section but contains microscopic interfacial defects. In a dry environment, these defects may never cause a problem. In body fluid, they become preferential pathways for moisture diffusion and ionic contamination — the necessary precursors for CAF.
This is why CAF resistance cannot be achieved solely through material specification. It must be built through lamination process control. RICHFULLJOY’s approach includes:
Press Profile Optimization per Laminate System: Different resin systems — epoxy, BT, polyimide, and blends — have different rheological behaviors during lamination. A profile that perfectly densifies a high-Tg FR-4 may starve a polyimide system of flow time, leaving resin-starved glass bundles that are intrinsically CAF-susceptible. We develop and lock press profiles per material system, not per product family.
Post-Lamination Cure Verification: Crosslink density in the cured resin is not just a Tg number. It directly correlates with moisture absorption rate and CAF resistance. A resin that is 95% cured may show an acceptable Tg by DSC, but the residual unreacted groups provide pathways for hydrolysis that accelerate glass-resin debonding. Our process monitors degree of cure to a tighter window than commercial IPC requirements, because the implant environment does not offer margin for error.
Copper Surface Preparation: The adhesion of prepreg to copper is governed by the surface topography of the copper foil — specifically, the tooth profile created by the foil manufacturing process and any subsequent oxide treatment. A low-profile foil that enables fine-line etching for HDI designs also provides less mechanical interlock than a standard-profile foil. For implantable boards where fine features and CAF resistance must coexist, the foil selection becomes a deliberate balancing act, not a default choice.
These are not exotic concerns. They are fundamental to any high-reliability PCB fabrication process. In the context of implantable medical devices, where the 2X CAF acceleration gap already eats half the safety margin, they are non-negotiable.
Conformal Coating and Encapsulation: The Last Interface
Even with optimized substrate selection, via architecture, and lamination control, the outer surface of an implantable PCB remains exposed — or nearly exposed — to body fluid. Conformal coating is the final physical barrier, and it is frequently misapplied in medical device manufacturing.
Parylene, deposited through chemical vapor deposition, is the coating of choice for many implantable applications. It is biocompatible, conforms to complex topographies, and provides an excellent moisture barrier at thicknesses of 5–25 microns. But Parylene’s Achilles' heel is adhesion. The CVD process grows Parylene as a mechanically bonded film on the substrate surface; it does not chemically bond like a reactive coating system. If adhesion fails — particularly at edges, around component leads, or at via openings — body fluid can wick underneath the coating, creating a trapped, stagnant volume of electrolyte in direct contact with the PCB surface. This local environment can be worse than direct immersion, because the trapped fluid concentrates ionic species over time through evaporation-condensation cycling across the coating.
This means that PCBA service for implantable devices must treat conformal coating not as a post-processing afterthought, but as an integrated manufacturing step with its own qualification requirements. RICHFULLJOY’s process includes:
• Pre-coating surface preparation: Plasma treatment to activate the soldermask and laminate surface, improving Parylene adhesion at the molecular level
• Adhesion verification: Tape-testing per IPC-CC-830 on witness coupons processed alongside production boards, with additional wet-adhesion testing after SBF immersion
• Coating coverage inspection: Fluorescence-based inspection for Parylene, since the coating is transparent and pinholing is invisible to standard AOI
For applications where even Parylene is deemed insufficient — high-voltage implantable pulse generators, for example — the manufacturing strategy shifts toward substrate-level encapsulation. Here, the entire PCB is overmolded or potted with a medical-grade silicone or epoxy system. But encapsulation introduces its own set of interactions: the thermal expansion of the encapsulant, the chemical compatibility with soldermask and component packages, and the long-term adhesion of the encapsulant to every surface it contacts. These interactions must be characterized through accelerated aging, not assumed from room-temperature properties.
The Electrical Test Gauntlet: 100% Is Not Enough
Every PCB manufactured for a medical implant undergoes electrical testing — continuity, isolation resistance, perhaps high-potential testing. But standard electrical test protocols are designed to catch manufacturing defects: open circuits, shorts, insufficient dielectric strength at time-zero. They are not designed to predict CAF behavior over ten years.
A board that passes 100% electrical test today can still harbor the latent conditions for CAF: a slightly resin-starved glass bundle, a micro-void at the via fill interface, a copper surface that was marginally cleaned before lamination. These conditions are electrically invisible until moisture reaches them and bias voltage drives ion migration. Catching them requires test methods that go beyond IPC-9252.
For implantable-class reliability, RICHFULLJOY recommends — and for our highest-criticality customers, implements — a tiered electrical test strategy:
1. Standard netlist testing to confirm circuit integrity
2. High-voltage insulation resistance testing under elevated temperature to stress the dielectric above operating conditions and identify weak interfaces before they become failure sites
3. Voltage-ramp dielectric breakdown testing on coupon structures extracted from the production panel, providing quantitative data on the dielectric strength margin of the specific lot
4. Post-stress retest after thermal cycling or moisture exposure on sample boards, confirming that dielectric properties hold after environmental conditioning
This level of testing adds cost and cycle time. For a consumer product, it would be difficult to justify. For an implantable medical device, where a single field failure triggers a recall that can cost tens of millions of dollars and damage patient trust irrevocably, the alternative is far more expensive.
Closing the 2X Gap: It’s a Manufacturing Problem
The discovery that CAF grows twice as fast in body fluids as accelerated models predict should not be interpreted as a material science crisis. It should be interpreted as a manufacturing precision problem. The accelerated models were never intended to predict CAF behavior in body fluid; they were developed for humid office environments and condensing automotive conditions. Applying them to implantable devices was always an extrapolation beyond the data.
Closing the gap means acknowledging that implantable medical PCB reliability is not achieved by selecting a laminate from a catalog or applying a coating from a syringe. It is achieved through an integrated manufacturing chain where every decision — substrate qualification, lamination press profiling, via fill material selection, coating adhesion treatment, electrical test protocol — is made with the implant environment as the reference condition.
This is the philosophy RICHFULLJOY brings to our medical PCB fabrication and implantable PCBA service work. We do not treat medical as just another vertical. We treat the implant environment as a distinct manufacturing discipline.
